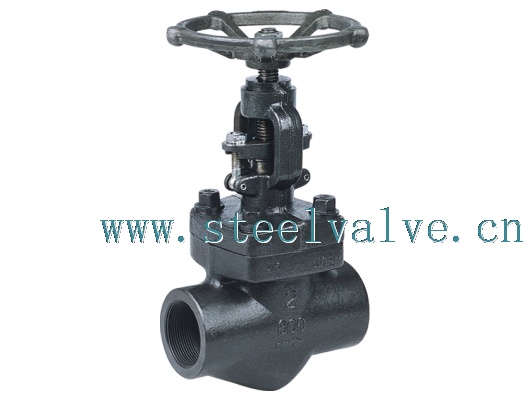

Forged Steel Bolted Bonnet Globe Valve
Forged Steel Bolted Bonnet Globe Valve
ASME Pressure Classes 150, 300, 600, 800 Lb
Bolted Bonnet-Threaded and Socket weld Ends-Dimensions (mm) and Weights (kg)
| NPS | Reduced. | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
| Full | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||
| L | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 | ||
| H(OPEN) | 166 | 166 | 171 | 207 | 240 | 258 | 330 | 355 | ||
| W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | ||
| Weights | Bolted | 1.9 | 1.9 | 2.1 | 3.5 | 6.0 | 7.5 | 11.4 | 14.6 | |
| Welded | 1.7 | 1.7 | 1.9 | 3.3 | 5.2 | 6.8 | 10.6 | 13.8 | ||
ASME Pressure Classes 900, 1500 Lb
Bolted Bonnet-Threaded and Socket weld Ends-Dimensions (mm) and Weights (kg)
| NPS | Reduced. | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
| Full | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||
| L | 92 | 111 | 111 | 120 | 152 | 172 | 200 | 220 | ||
| H(OPEN) | 171 | 207 | 207 | 240 | 258 | 330 | 355 | 370 | ||
| W | 100 | 125 | 125 | 160 | 160 | 180 | 200 | 240 | ||
| Weights | Bolted | 2.2 | 3.7 | 3.6 | 6.8 | 7.6 | 11.6 | 15.0 | 21.9 | |
| Welded | 2.0 | 3.4 | 3.3 | 6.0 | 5.6 | 10.3 | 14.2 | 18.0 | ||
ASME Pressure Classes 150, 300, 600, 800 Lb
Bolted Bonnet-Flanged Ends-Dimensions (mm) and Weights (kg)
| NPS | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
| L(RF)L1(BW) | 150 | 108 | 117 | 127 | 140 | 165 | 203 | |
| 300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
| 600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| H(OPEN) | 150~300 | 166 | 171 | 207 | 240 | 258 | 330 | |
| 600 | 171 | 207 | 240 | 258 | 330 | 380 | ||
| W | 100 | 100 | 125 | 160 | 160 | 180 | ||
| Weights | 150 | RF | 4.5 | 6.9 | 9.8 | 13.5 | 19.5 | 28.0 |
| BW | 2.3 | 3.6 | 7.8 | 8.2 | 12.0 | 15.0 | ||
| 300 | RF | 4.8 | 7.7 | 11.0 | 16.8 | 21.2 | 32.6 | |
| BW | 2.8 | 4.0 | 8.5 | 9.2 | 12.6 | 16.8 | ||
| 600 | RF | 5.6 | 7.8 | 12.5 | 17.0 | 23.5 | 38.8 | |
| BW | 3.4 | 4.7 | 9.2 | 10.5 | 13.3 | 18.9 | ||
ASME Pressure Classes 900, 1500 Lb
Bolted Bonnet-Flanged Ends-Dimensions (mm) and Weights (kg)
| NPS | 1/2 | 3/4 | 1 | 3/4 | 1-1/2 | 2 | |
| L(RTJ) | 900~1500 | 216 | 229 | 254 | 279 | 305 | 371 |
| L1(BW) | 900~1500 | 216 | 229 | 254 | 279 | 305 | 368 |
| H(OPEN) | 207 | 207 | 240 | 258 | 330 | 355 | |
| W | 125 | 125 | 160 | 160 | 180 | 200 | |
| Weights | RTJ | 8.0 | 13.2 | 17.4 | 19.0 | 24.5 | 31.0 |
| BW | 5.2 | 10.0 | 14.6 | 15.8 | 20.5 | 27.8 | |
Specifications
ASME Pressure Classes: 150, 300, 600, 800, 900, 1500 Lb
Sizes: 3/8, 1/2, 3/4, 1-1/4, 1-1/2, 2" ( DN 10, 15, 20, 25, 32, 40, 50 mm )
Ends: Welded, threaded and flanged.
Materials: Stainless steel, alloy steel, carbon steel.
