2PC Body Cast Steel Floating Ball Valve
| 2PC Body Cast Floating Ball Valve | ||
| Features | Specifications | |
| Size: 1/2"~10" | Design | ASME 16.34/BS 5351 |
| Class: 150~600 | Face to Face | ASME B16.10 |
| Two Pieces Cast Steel Body | End to End | ASME B16.10 |
| Floating Ball, Full & Reduced Bore | End Flange | ASME B16.5 |
| Anti-Static Device | BW End | ASME B16.25 |
| Blow-out Proof Stem | Test | API 598/ BS 6755 |
| Fire Safe Design | Fire Safe Test | API 607/API 6FA |
| Low Emission | Special | NACE MR-01-7 |

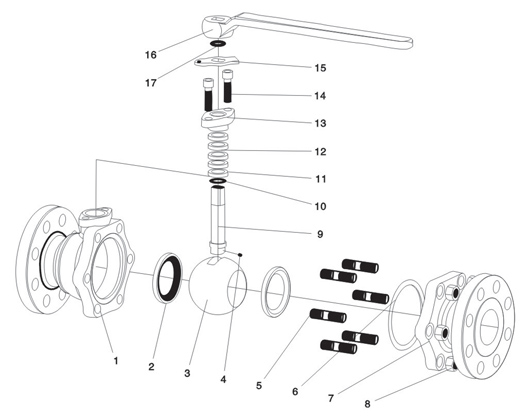

| The Material of Main Parts |
|
NO.
|
Parts Name
|
Carbon Steel Series
|
Stainless steel Series
|
Low Temperature Series
|
Anti-Sulphu
|
|
|
Carbon Steel
|
SS Series
|
|||||
|
1
|
Body
|
A216 WCB
|
A351?CF8?CF8M?CF3?CF3M
|
A352LCB?LCC
|
GB/T12229?A216WCB
|
A351 CF8M
|
|
2
|
Seat
|
PTFE?RPTFE?Braided Graphite Fibre ,Steel+Rubber Assemble
|
||||
|
3
|
Ball
|
A105+HCr/ENP
|
A351?CF8?CF8M?CF3?CF3M
|
A352LCB?LCC+ENP
|
A105+HCr/ENP
|
A351 CF8M+ENP
|
|
4
|
Spring
|
INCONEL750
|
||||
|
5
|
Stud
|
A193 B7
|
A193 B8?B8M
|
A320 L7
|
A193 B7M
|
A193 B8M
|
|
6
|
Gasket
|
Soft Graphite+SS
|
||||
|
7
|
Eyeblt Nut
|
A194 2H
|
A194 8M
|
A194 4
|
A194 2HM
|
A194 8M
|
|
8
|
Bonney
|
A216 WCB
|
A351?CF8?CF8M?CF3?CF3M
|
A352LCB?LCC
|
GB/T12229?A216 WCB
|
A351 CF8M
|
|
9
|
Stem
|
A182 F6a
|
A182 F304?316
|
A182 F6a
|
A182 F304
|
A182 F316
|
|
10
|
Bush Bearing
|
Metal+PTFE;Braided Graphite Fibre
|
||||
|
11
|
Packing Seat
|
A182 F6a
|
|
A182 F6a
|
A182 F6a
|
|
|
12
|
Packing
|
Soft Graphite,PTFE
|
||||
|
13
|
Gland Packing
|
A216 WCB
|
A351 CF8?CF8M
|
A351 CF8
|
GB/T12229?A216 WCB
|
A351 CF8M
|
|
14
|
Nipple
|
A193 B7
|
A193 B8?B8M
|
A320 L7
|
A193 B7M
|
A193 B8M
|
|
15
|
Locating Plate
|
GB/T700 Q235A+Zn(Cr)
|
||||
|
16
|
Circlip
|
GB/T1222 65Mn
|
||||
|
17
|
Hand Lever
|
A216 WCB
|
||||
Dimension :
·Class 150 Full Bore Folating Ball Valve
·Class 300 Full Bore Folating Ball Valve
·Class 400~600 Full Bore Folating Ball Valve
·Class 150 Reduced Bore Folating Ball Valve
·Class 300 Reduced Bore Folating Ball Valve
·Class 400~600 Reduced Bore Folating Ball Valve
