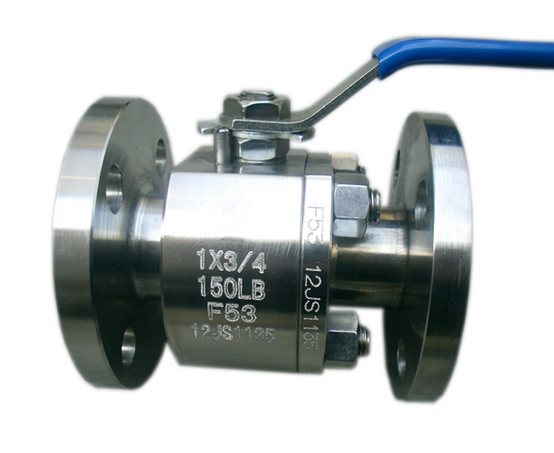

2PCS Body Forged Steel Floating Ball Valve
Product name : 2PCS Body Forged Steel Floating Ball Valve
Products Category: > Ball Valve
.jpg)
| 2PC Body Forge Floating Ball Valve: NPT/SW/BW/RF/RTJ |
| Features |
Specifications |
|
| Size: 1/2"~10" |
Design |
ASME 16.34/BS 5351 |
| Class: 150~2500 |
Face to Face |
ASME B16.10 |
| Two Pieces Forge Steel Body |
End to End |
ASME B16.10 |
| Floating Ball, Full & Reduced Bore |
End Flange |
ASME B16.5 |
| Anti-Static Device |
BW End |
ASME B16.25 |
| Blow-out Proof Stem |
Test |
API 598/ BS 6755 |
| Fire Safe Design |
Fire Safe Test |
API 607/API 6FA |
| Low Emission |
Special |
NACE MR-01-7 |
| ITEM |
PART |
STANDARD MATERIAL |
STAINLESS STEEL |
SOUR SERVICE |
LOW-TEMP. SERVICE |
| 1 |
Body |
ASTM A105N |
ASTM A182 F316 |
ASTM A105N |
ASTM A350 LF2 |
| 2 |
Bonnet |
ASTM A105N |
ASTM A182 F316 |
ASTM A105N |
ASTM A350 LF2 |
| 3 |
Ball |
ASTM A105N/ ENP |
ASTM A182 F316 |
ASTM A105N/ ENP |
ASTM A182 F316 |
| 4 |
Lever |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Carbon Steel |
| 5 |
Seat Ring |
PTFE |
PTFE |
PTFE |
PTFE |
| 6 |
Stem |
ASTM A182 F6a |
ASTM A182 F316 |
ASTM A182 F6a |
ASTM A182 F316 |
| 7 |
Gland |
ASTM A276 420 |
ASTM A276 316 |
ASTM A276 420 |
ASTM A276 316 |
| 8 |
Gasket |
316SS+Graphite |
316SS+Graphite |
316SS+Graphite |
316SS+Graphite |
| 9 |
Packing Set |
Graphite |
Graphite |
Graphite |
Graphite |
| 10 |
Space Ring |
ASTM A276 420 |
ASTM A182 F316 |
ASTM A276 420 |
ASTM A182 F316 |
| 11 |
Thrust Washer |
PTFE |
PTFE |
PTFE |
PTFE |
| 12 |
Stud |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B7M |
ASTM A193 L7M |
| 13 |
Nut |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 2HM |
ASTM A194 7M |
| 14 |
Anti-Static |
SS |
SS |
SS |
SS |
| 15 |
Bolt |
Carbon Steel |
SS |
Carbon Steel |
SS |
| 16 |
Gland Cap |
ASTM A105N |
ASTM A182 F316 |
ASTM A105N |
ASTM A350 LF2 |
| 17 |
Gasket |
316SS+Graphite |
316SS+Graphite |
316SS+Graphite |
316SS+Graphite |
| 18 |
Gland Flange |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A216 WCB |
ASTM A352 LCB |
| 19 |
Bolt |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B7M |
ASTM A193 L7M |
| 20 |
Locking Plate |
SS |
SS |
SS |
SS |
| 21 |
Screw |
SS |
SS |
SS |
SS |
| 22 |
Bolt |
Carbon Steel |
SS |
Carbon Steel |
SS |
| 23 |
Washer |
Carbon Steel |
SS |
Carbon Steel |
SS |
| 24 |
Stop Plate |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Carbon Steel |
