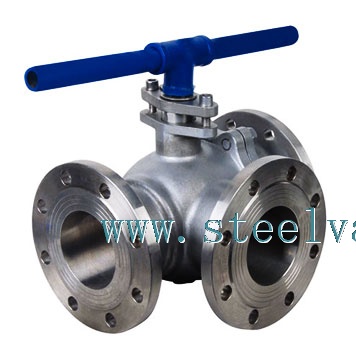

150LB/300LB Three Way Ball Valve
Three Way Ball Valve 150LB/300LB
| Three Way Ball Valve | ||
| Features | Specifications | |
| Size: 1/2"~8" | Design | ASME 16.34/BS 5351 |
| Class: 150~300LB | Face to Face | ASME B16.10 |
| 2 Pieces Cast Steel Steel Body | End to End | ASME B16.10 |
| Float Ball, Full & Reduced Bore | End Flange | ASME B16.5 |
| Anti-Static Device | BW End | ASME B16.25 |
| Blow-out Proof Stem | Test | API 598/ BS 6755 |
| Fire Safe Design | Fire Safe Test | API 607/API 6FA |
| Low Emission | Special | NACE MR-01-7 |
| No. | Part | Material |
| 1 | Ball | A351-CF8, CF8M, CF3, CF3M, Duplex |
| 2 | Body | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex |
| 3 | Stem | ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51 |
| 4 | Thrust Washer | PTFE |
| 5 | Packing | PTFE Graphite |
| 6 | Screw | ASTM A193-B7, B8 |
| 7 | Gland Flange | A216-WCB A351-CF8 |
| 8 | Lever | A216-WCB |
| 9 | Limited Plate | 1015+Cr. Carbon Steel+Cr. |
| 10 | Retainer | Carbon Steel |
| 11 | Seat | PTFE RTPFE PEEK PPL |
| 12 | Gasket | Stainless Steel+Graphite S.S.316+Graphite |
| 13 | Bonnet | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex |
| 14 | Stud | ASTM A193-B7, B7M, B8, B8M |
| 15 | Nut | ASTM A194-2H, 2HM, 8, 8M |
