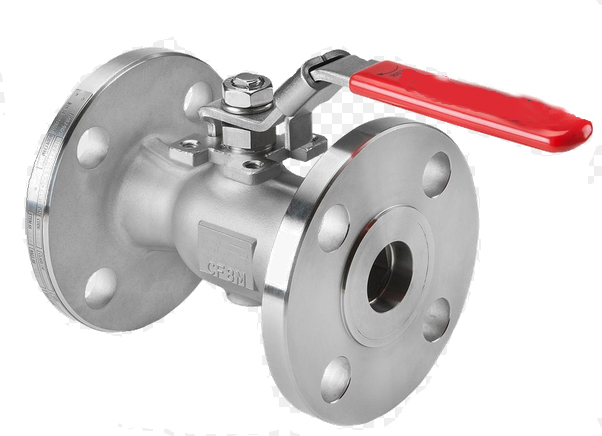

Floating Type Unibody Ball Valve
Product name : Floating Type Unibody Ball Valve
Products Category: > Ball Valve
Floating Type Unibody Ball Valve 150~300LB
Material Selection
| No |
Part |
Standard |
Stainless Steel |
SourService |
Low Temp. Service |
| 1 |
Body |
ASTM A216-WCB |
ASTM A351-CF8M |
ASTM A216-WCB |
ASTM A352-LCB |
| 2 |
Bonnet |
ASTM A216-WCB |
ASTM A351-CF8M |
ASTM A216-WCB |
ASTM A352-LCB |
| 3 |
Ball |
ASTM A105N/ENP |
ASTM A182-F316 |
ASTM A105N/ENP |
ASTM A182-F316 |
| 4 |
Lever |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Carbon Steel |
| 5 |
Gland Flange |
ASTM A216-WCB |
ASTM A351-CF8 |
ASTM A216-WCB |
ASTM A352-LCB |
| 6 |
Seating Ring |
PTFE |
PTFE |
PTFE |
PTFE |
| 7 |
Stem |
ASTM A182-F6a |
ASTM A182-F316 |
ASTM A182-F6a |
ASTM A182-F316 |
| 8 |
Gland |
ASTM A276-420 |
ASTM A276-316 |
ASTM A276-420 |
ASTM A276-316 |
| 9 |
Gasket |
316 S.S.+Graphite |
316 S.S.+Graphite |
316 S.S.+Graphite |
316 S.S.+Graphite |
| 10 |
Packing Set |
Graphite |
Graphite |
Graphite |
Graphite |
| No |
Part |
Standard |
Stainless Steel |
SourService |
Low Temp. Service |
| 11 |
Thrust Washer |
PTFE |
PTFE |
PTFE |
PTFE |
| 12 |
Bolt |
ASTM A193-B7 |
ASTM A193-B8 |
ASTM A193-B7M |
ASTM A320-L7M |
| 13 |
Anti-Static Device |
S.S. |
S.S. |
S.S. |
S.S. |
| 14 |
Stop Plate |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Carbon Steel |
| 15 |
Retainer |
Carbon Steel |
S.S. |
Carbon Steel |
S.S. |
| 16 |
Washer |
Carbon Steel |
S.S. |
Carbon Steel |
S.S. |
| 17 |
O-Ring |
Viton A |
Viton A |
Viton A |
HNBR |
| 18 |
Bolt |
Carbon Steel |
S.S. |
Carbon Steel |
S.S. |
