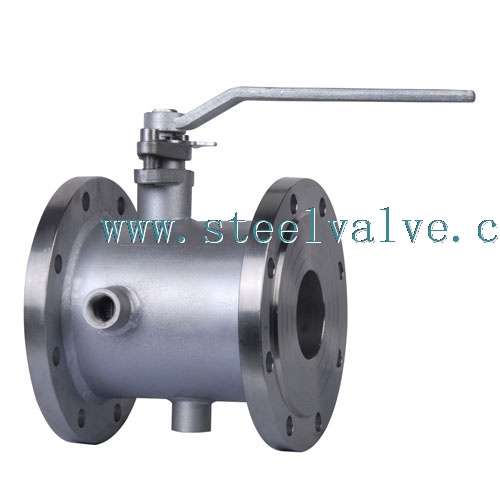

Jacket Ball Valve
Jacket Ball Valve
| Three Way Ball Valve | ||
| Features | Specifications | |
| Size: 1/2"~8" | Design | ASME 16.34/BS 5351 |
| Class: 150~300LB | Face to Face | ASME B16.10 |
| 2 Pieces Cast Steel Body | End to End | ASME B16.10 |
| Float Ball, Full & Reduced Bore | End Flange | ASME B16.5 |
| Anti-Static Device | BW End | ASME B16.25 |
| Blow-out Proof Stem | Test | API 598/ BS 6755 |
| Fire Safe Design | Fire Safe Test | API 607/API 6FA |
| Low Emission | Special | NACE MR-01-7 |

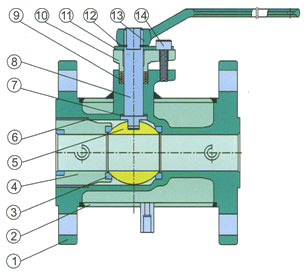

Materials of Jacket Ball Valves
| No. | Part | Material |
| 1 | Body | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex |
| 2 | Jacket | 1015 Stainless Steel |
| 3 | Seat | PTFE RTPFE PEEK PPL |
| 4 | Screwed Cover | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex |
| 5 | Ball | A351-CF8, CF8M, CF3, CF3M, Duplex |
| 6 | Gasket | PTFE Graphite |
| 7 | Thrust Washer | PTFE |
| 8 | Stem | ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51 |
| 9 | Packing | PTFE Graphite |
| 10 | Gland Flange | A216-WCB A351-CF8 |
| 11 | Limited Plate | 1015+Cr. Carbon Steel+Cr. |
| 12 | Retainer | Carbon Steel |
| 13 | Lever | A216-WCB |
| 14 | Screw | ASTM A193-B7, B8 |
| No. | Accessory name | Material |
| ASTM | ||
| 1 | Jacket | A105 |
| 2 | Seat | A216-WCB |
| 3 | Body | A105 |
| 4 | Sealing Ring | PTFE, Counterpoint polyphony |
| 5 | Ball | |
| 6 | Stem | A247-410 |
| 7 | Stuffing | Graphite |
| 8 | Gland | A216-WCB |
