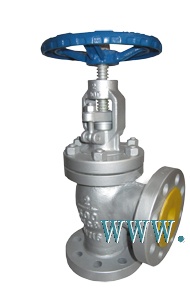

BS1873 Angle Globe Valve
BS1873 Angle Globe Valve
Globe Valve / Feature:
Proven technology
Angle patteren body design
OS & Y,outside screw and yoke
BB,Bolted bonnet
Yoke intergral with bonnet
Rising stem and handwheel
Loose disc,choice of plug or ball
Renewable seat ring or Body seat ring
Impact handwheel for 10" & above
Horizontal servece
NPS & Class :
NPS 2"~18" Class 150L
NPS 2"~18" Class 300LB~600LB
Main Parameters :
Design and Manufacture :API 600,BS 1873 Face to
Face Dimension :ASME B16.10,EN558
Flange Connection Dimension :ASME B16.5,ASME B16.47
BW Connection Dimension :ASME B16.25
Pressure-Temperature Ratings :ASME B16.34
Test and Inspection :API 598
Type of Operation :Manual,Gear,Electric,Pneumatic,Hydraulic
Main Materials :WCB,WCC,WC6,WC9,C5,C12,LCB,LCC,CF8,CF8M,CF3,CF3M,CN7M,CF8C
Globe Valve / Feature:
Proven technology
Angle patteren body design
OS & Y,outside screw and yoke
BB,Bolted bonnet
Yoke intergral with bonnet
Rising stem and handwheel
Loose disc,choice of plug or ball
Renewable seat ring or Body seat ring
Impact handwheel for 10" & above
Horizontal servece
NPS & Class :
NPS 2"~18" Class 150L
NPS 2"~18" Class 300LB~600LB
Main Parameters :
Design and Manufacture :API 600,BS 1873 Face to
Face Dimension :ASME B16.10,EN558
Flange Connection Dimension :ASME B16.5,ASME B16.47
BW Connection Dimension :ASME B16.25
Pressure-Temperature Ratings :ASME B16.34
Test and Inspection :API 598
Type of Operation :Manual,Gear,Electric,Pneumatic,Hydraulic
Main Materials :WCB,WCC,WC6,WC9,C5,C12,LCB,LCC,CF8,CF8M,CF3,CF3M,CN7M,CF8C
