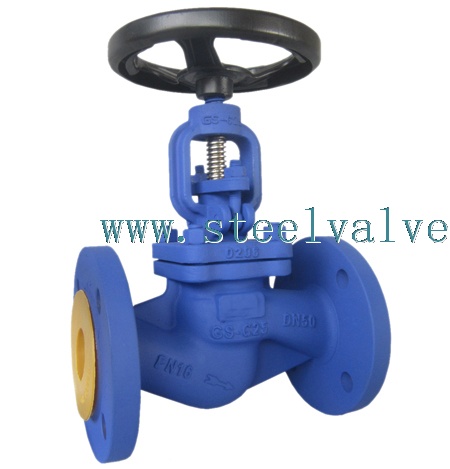

DIN Bolted Bonnet Globe Valves
DIN Bolted Bonnet Globe Valves
Globe Valve / Feature:
Proven technology
Solid plug made of stainless material
Solid stem make of stainless material
Stem sealing in graphite Raised, turning stem
Back sealed stem Welded seat in stellite or Cr-steel
High-tensile Gland Packing Self adjusted gland
Plug disc,throttling disc,Balance disc design
DIN PN:PN16,PN25,PN40,PN63,PN100
DIN DN:DN15-DN400
Temperature Rating:-260°C up to +420°C
Body forms:Straight pattern body, Y-pattern body, Angle pattern body
Basic shell material:Low temperature carbon steel, Carbon steel, High temperature carbon steel, Stainless steel, High temperature stainless steel, High chromium stainless steel, Hastelloy, Inconel, Pure nickel, Titanium, Other special alloys
Connections:Flanged ends, Butt welding ends, Socket welding ends, Threaded ends, Other requirements
Operation:Handwheel, Lever, Chainwheel, Gear operator, Pneumatic piston actuator, Pneumatic diaphragm actuator, Electric actuator
Globe Valve / Applications: Industry, power stations , flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
Globe Valve / Mediums: Gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc.
Stanrard material : GP240GH (1.0619/GS-C25),G-X6CrNi18.9(1.4308),G-X6CrNiMo18.10 (1.4408)
Design&manufacture standard conforms to EN 13709
Face to face standard conforms to EN 558-1
Flange standard conforms to EN 1092-1
Test conforms to EN 12266
Globe Valve / Feature:
Proven technology
Solid plug made of stainless material
Solid stem make of stainless material
Stem sealing in graphite Raised, turning stem
Back sealed stem Welded seat in stellite or Cr-steel
High-tensile Gland Packing Self adjusted gland
Plug disc,throttling disc,Balance disc design
DIN PN:PN16,PN25,PN40,PN63,PN100
DIN DN:DN15-DN400
Temperature Rating:-260°C up to +420°C
Body forms:Straight pattern body, Y-pattern body, Angle pattern body
Basic shell material:Low temperature carbon steel, Carbon steel, High temperature carbon steel, Stainless steel, High temperature stainless steel, High chromium stainless steel, Hastelloy, Inconel, Pure nickel, Titanium, Other special alloys
Connections:Flanged ends, Butt welding ends, Socket welding ends, Threaded ends, Other requirements
Operation:Handwheel, Lever, Chainwheel, Gear operator, Pneumatic piston actuator, Pneumatic diaphragm actuator, Electric actuator
Globe Valve / Applications: Industry, power stations , flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
Globe Valve / Mediums: Gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc.
Stanrard material : GP240GH (1.0619/GS-C25),G-X6CrNi18.9(1.4308),G-X6CrNiMo18.10 (1.4408)
Design&manufacture standard conforms to EN 13709
Face to face standard conforms to EN 558-1
Flange standard conforms to EN 1092-1
Test conforms to EN 12266
